SPECIFICATIONS

Brand Name: TOOLTOP

Hign-concerned Chemical: None

Origin: Mainland China

Power Type: None

Style: Embedded

Note: In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry

Features:

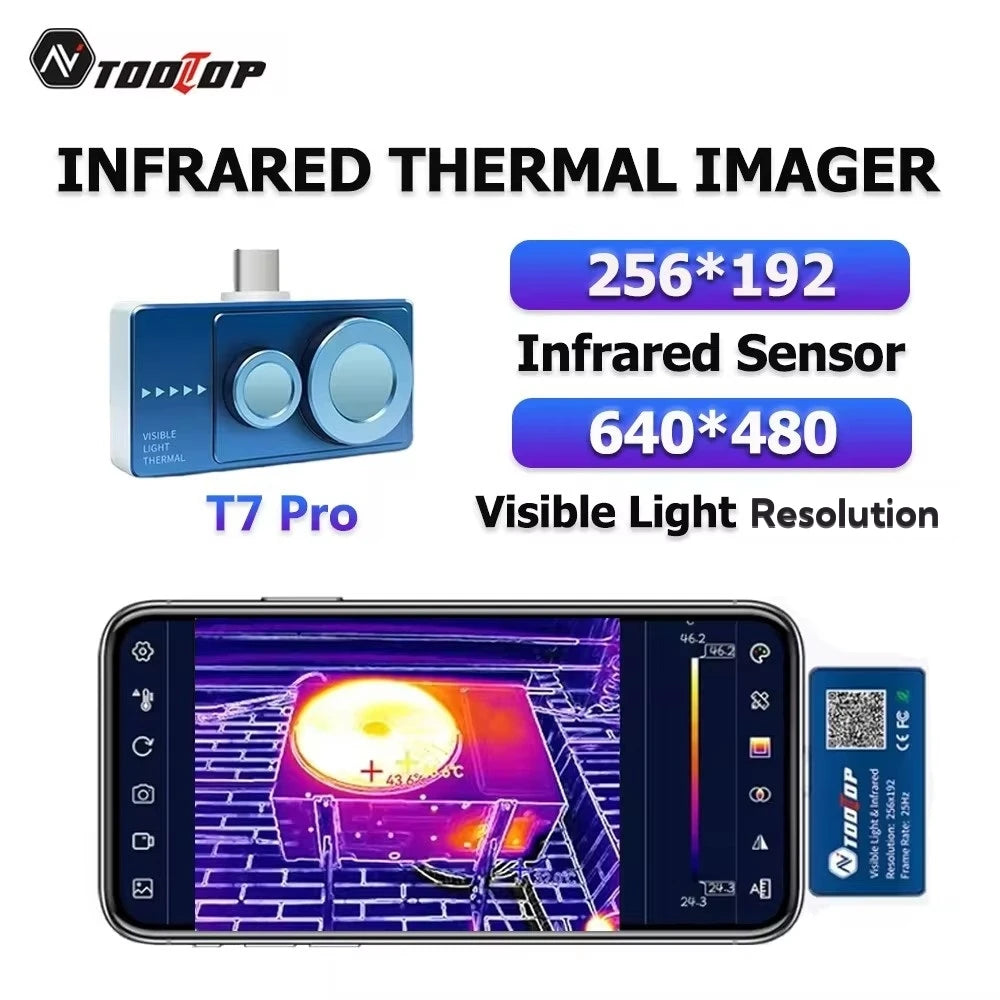

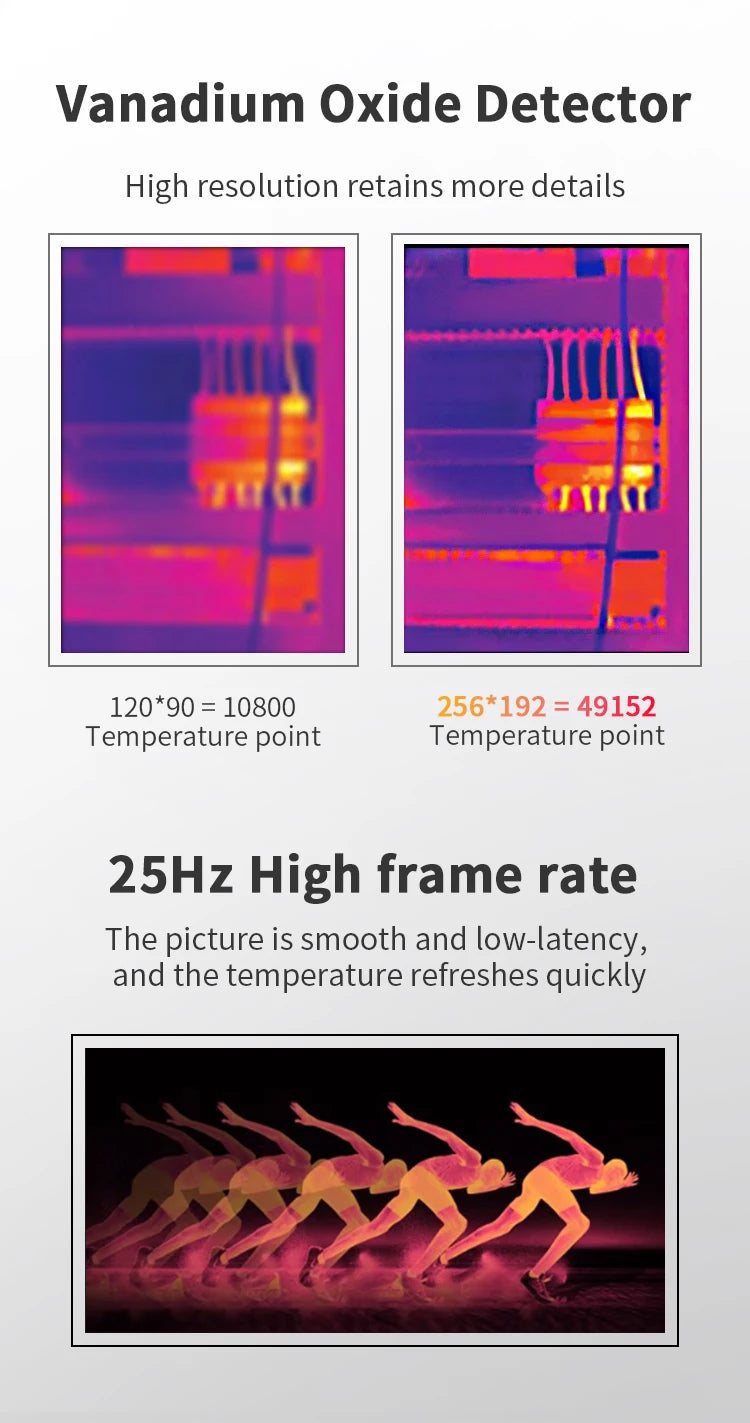

[ 256 x 192 infrared Sensor & 640 x 480 Visible Light Dual Lens]

256*192 High-resolution infrared thermal imaging with 640x480 visible light auxiliary imaging and advanced image fusion technology can intuitively discover hidden problems

[ 25Hz Refresh Rate ]

delivers a smooth visual experience without lag, ensuring real-time monitoring and analysis.

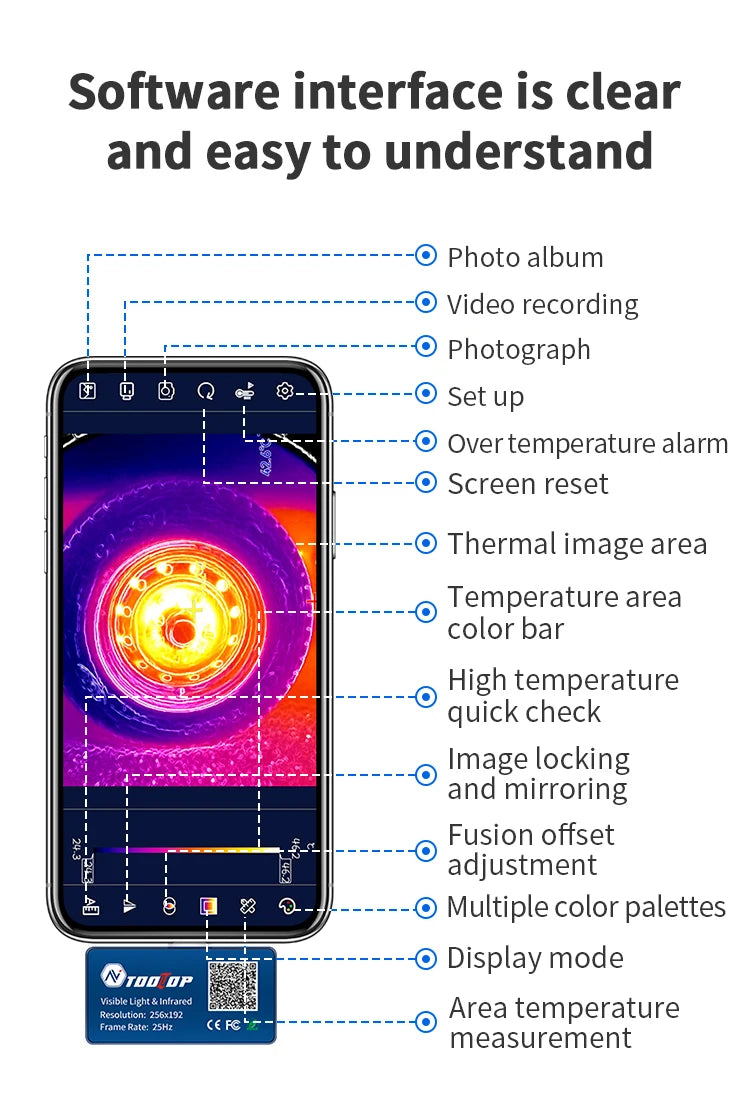

[ Multi-Function Software ]

for Android system ,allows for photo capture and video record, set target temperature measurement points, lines, and areas, along with 6 color palettes to easily display temperature differences.

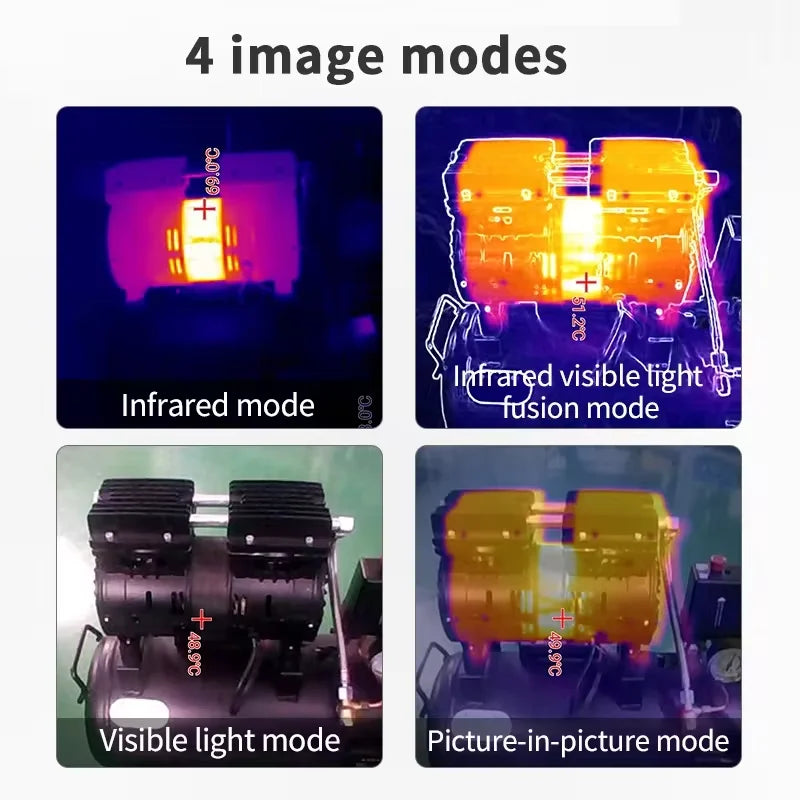

[Multiple imaging modes]

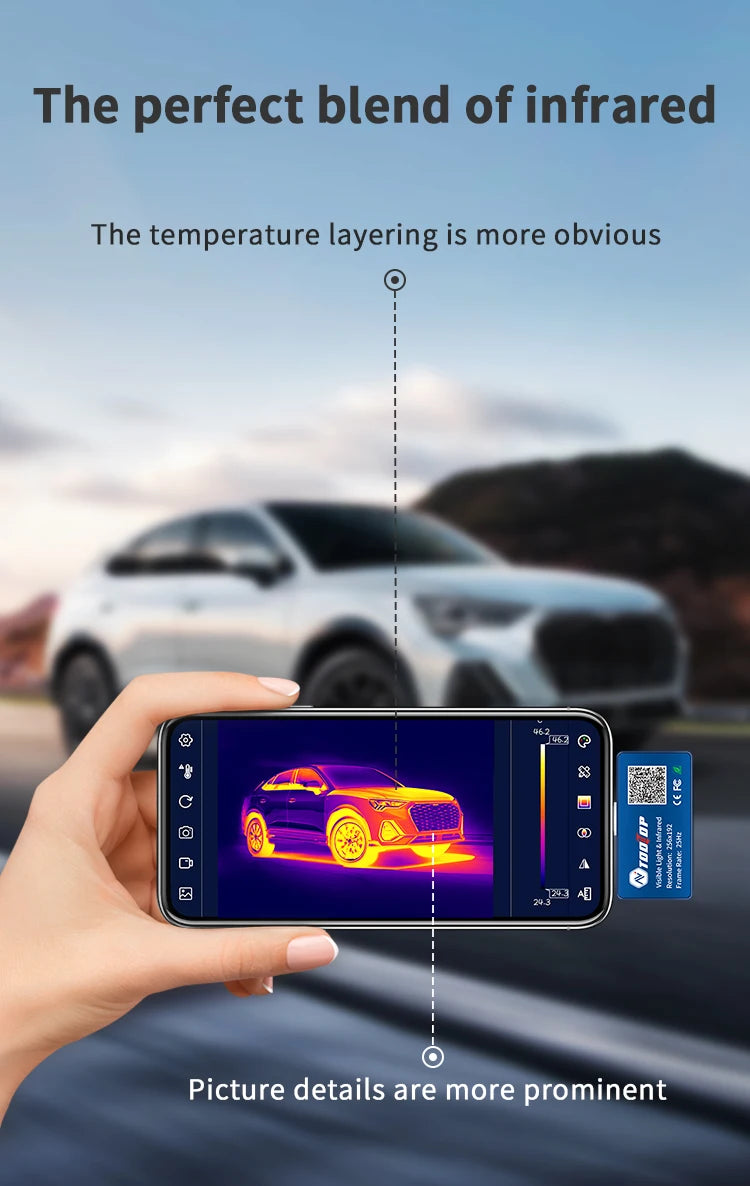

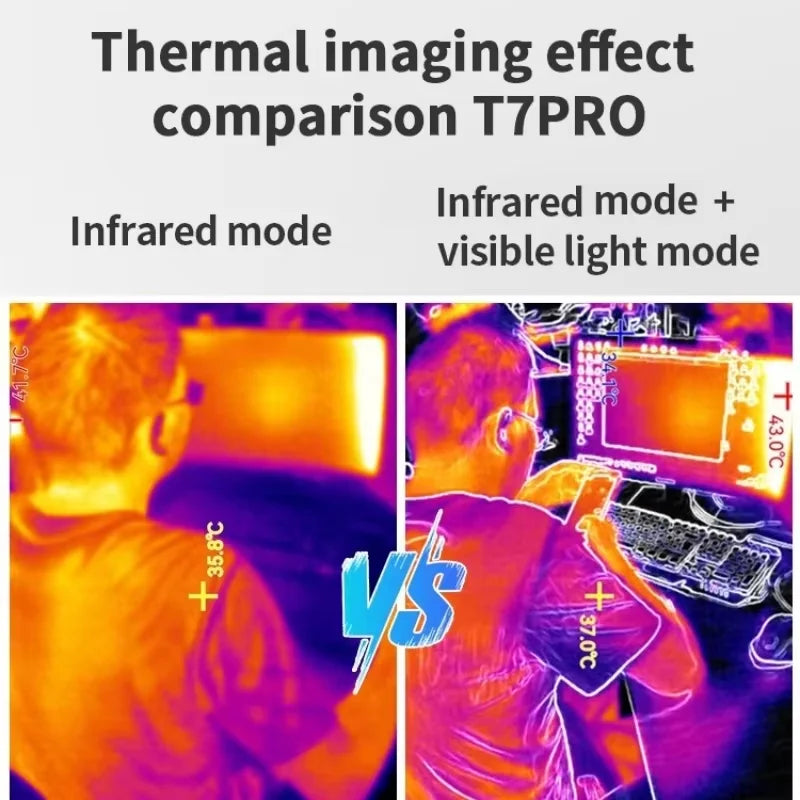

supports infrared mode, visible light mode, multiple visible light and infrared fusion modes. Compared with traditional mobile phone thermal imagers, the image effect is clearer and more delicate.

[ Enhanced Detail Clarity ]

adjusts sharpness and contrast, making your field of view clearer and more detailed for improved observation

[ -50~600℃ Wide Temperature Measurement range ]

ensures high accuracy within ±3.6℉(±2℃) or ±2% of the exact reading, providing reliable data for various applications.

[ Multi-Language Support ]

includes Chinese, English, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, and Finnish, catering to a diverse user base.

[ Lightweight Design ]

Only 23 Grams makes it compact and easy to carry, complemented by an exquisite storage bag for effortless transport!

Specification:

Infrared pixels: 256*192

Visible light pixels: 640*480

Spectral range: 8~14 um

Frame rate: 25Hz

NETD: <50mk@ 25℃

FOV: 56° x 42°

Lens: 3.2mm

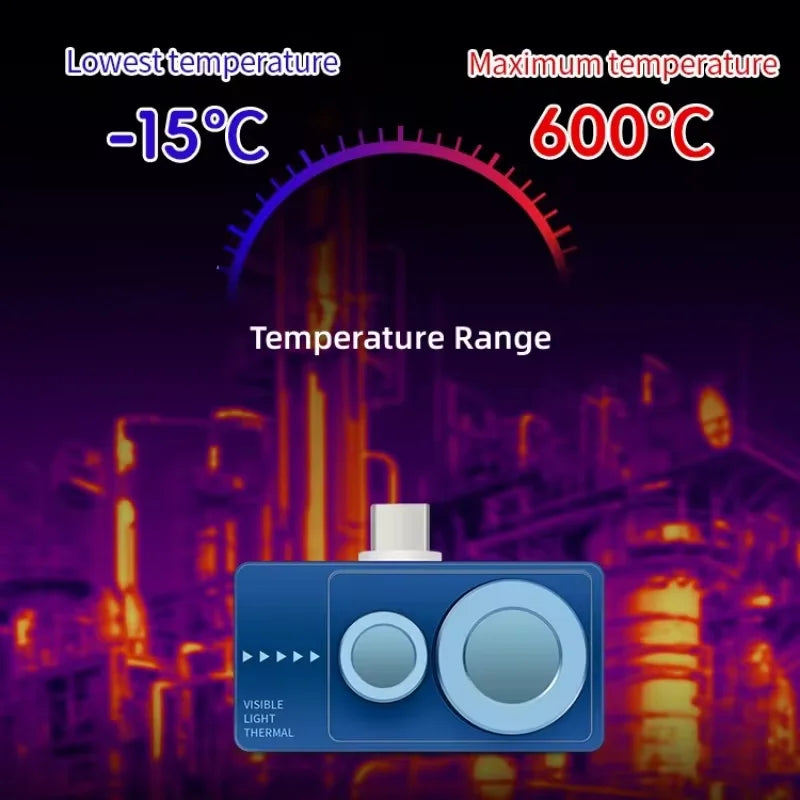

Measuring range: -15℃~600℃

Accuracy: ± 2℃ or± 2%

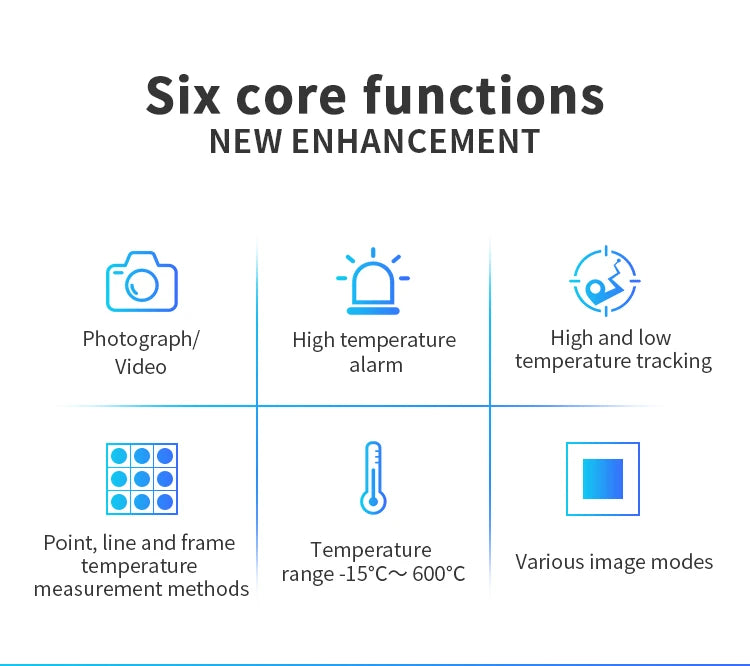

Temperature measurement : Highest, lowest, central point and area temperature measurement are supported

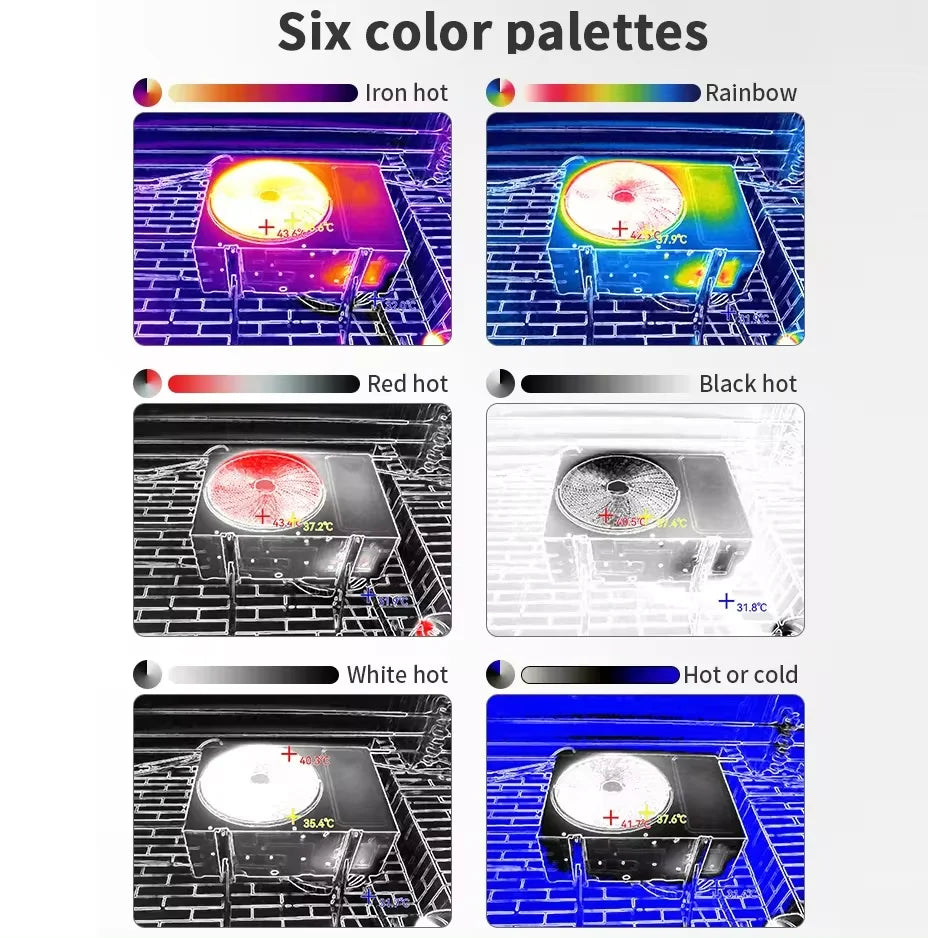

Color palette: iron , white hot, black hot, rainbow, red hot, cold blue

Language: Chinese, English, Russian, German, Italian, Portuguese, Japanese, French, Spanish, Finnish, Polish, Korean

Operating temperature: -10℃-75℃

Storage temperature: 45℃-85℃

Water proof: IP54

Product size: 40mm x 25mm x 14mm

Product weight: 23g
